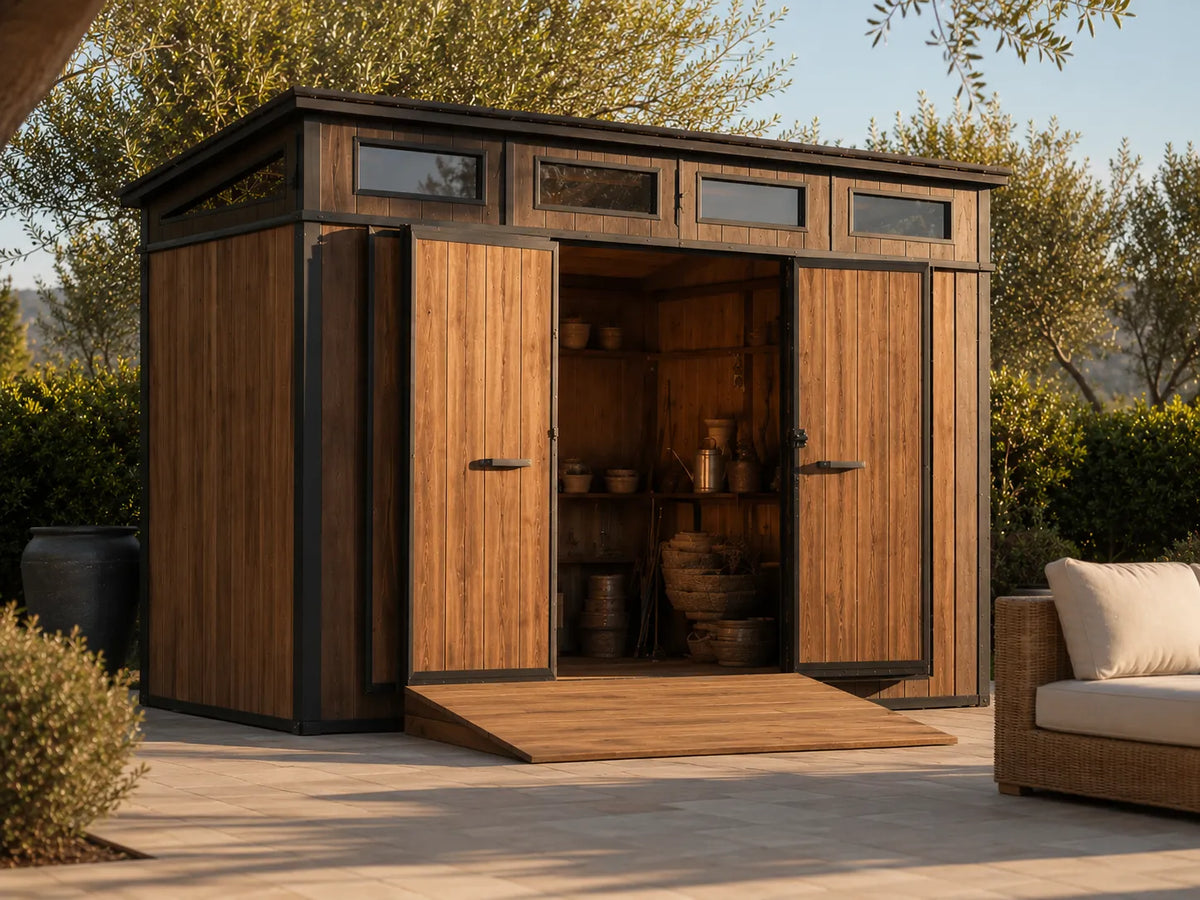

How to Build a Ramp for a Shed?

When you drag a lawn mower over a shed threshold, you usually meet a problem. The wheels catch. The deck scrapes. Eventually the door frame starts to splinter. A ramp fixes this problem, but only if it is built the right way.

This guide walks through slope math, materials, build steps, and the mistakes people often make. It also covers when building isn't worth it and buying a ready-made ramp makes more sense.

Does your shed actually need a ramp?

Start with a tape measure. Measure straight down from the shed's door threshold to the ground. That "height" decides almost everything about the project.

A rise under an inch or two is often not worth building a ramp. A bump of about one inch caused no real problems for mowers or wheelbarrows. Most equipment starts catching on the lip once the gap climbs past 3 or 4 inches.

A push mower, a wheelbarrow, a riding mower, and a wheelchair each have different clearance and slope needs. The next section will explain it in detail that why that distinction changes the whole design.

Slope Ratio: The Part Most People Get Wrong

Slope is simply rise divided by run, and it is usually written as a ratio like 1:12. That means for every 1 inch of rise, the ramp needs 12 inches of length.

For wheelchair access, the Americans with Disabilities Act sets a maximum slope of 1:12, and that number also shows up as the general recommendation for home ramps that need to be safe for anyone to use.

Mowers and other equipment can usually handle something steeper. One builder's guide puts a comfortable working range for equipment at roughly a 1:8 slope, meaning one inch of rise for every eight inches of horizontal run.

Rise over 30 inches changes the plan entirely. At that height, a single straight ramp gets long and awkward, so building codes call for a flat landing partway up, breaking the climb into two shorter sections.

The Hidden Trap: Ground Clearance

A mower deck, especially on a riding mower or zero-turn, can "bottom out" at that transition even if the overall slope looks fine on paper.

One woodworking forum thread explained it directly: the departure angle where the ramp meets the shed threshold matters more than the ramp's overall slope, because a mower can bottom out there even on a gentle ramp, and anything steeper than roughly 20 to 25 percent tends to cause trouble.

The fix way: Using a slight curve instead of one straight-line angle change. Curve the ramp near the top specifically so the tractor wouldn't bottom out at the threshold.

Know the ground clearance of the ramp before finalizing a design is helpful.

What materials of the ramp should I choose?

There are four main options. Each fits a different budget, skill level, and timeline.

Pressure-Treated Lumber

Pressure-treated lumber is the most common DIY choice. A pressure-treated ramp usually can last over 10 years before it was finally replaced. That kind of lifespan is realistic when ground-contact-rated wood is used and the ramp has proper drainage underneath.

Concrete

Concrete costs more upfront and takes longer to install, but it needs almost no maintenance afterward and handles heavy equipment well. It makes sense for a shed that will permanently store a tractor or ATV.

Gravel or Crushed Stone

Gravel or crushed stone, built between two retaining walls, is a lower-cost option some builders prefer.

Aluminum

Pre-made aluminum ramps skip construction entirely.

Products from brands like Guardian are commonly rated to hold 1,500 pounds total across a pair of ramps, with each ramp supporting 750 pounds, and a punch-plate surface for traction in wet conditions. They typically run 3 to 4 feet long and mount with pre-drilled holes for a semi-permanent setup, or lean against the wall when not in use.

Building a Pressure-Treated Ramp: Step-by-Step

Step 1: Measure rise and run.

Confirm the threshold height and pick a target slope based on what's using the ramp. Multiply the rise by 8 or 12, depending on the slope chosen, to get the ramp's length.

Step 2: Cut the stringers.

Stringers are the angled support boards running the length of the ramp. Space them 12 to 16 inches apart on center; tighter spacing, closer to 12 inches, adds strength for heavier loads.

Step 3: Attach a ledger board.

This board bolts to the shed's floor framing and gives the stringers something solid to attach to at the top of the ramp.

Step 4: Install decking.

Lay decking boards across the stringers, leaving a small gap between boards for drainage. Use exterior-rated deck screws, not nails, since screws hold up better under repeated weight and vibration.

Step 5: Address the threshold gap.

If there's still a lip where the ramp meets the door, options include planing down the door's bottom edge, adding a rubber door sweep, or building the last few inches of the ramp with a slight upward curve.

Step 6: Add traction.

Grip-strip tape or a textured paint additive helps in wet weather.

Permanent ramp or portable ramp?

The right choice comes down to how often the ramp gets used and how much the yard's appearance matters.

• Daily use points toward permanent. Anyone storing a riding mower, tractor, or other equipment that comes in and out several times a week. The tradeoff is that it sits in the yard permanently.

• Occasional use points toward portable. A portable aluminum ramp is the better fit for occasional access, rentals, or anyone unsure yet how often the shed will get used. It costs less upfront, requires no construction, and can be picked up and stored inside the shed when not needed. The tradeoff is lower weight capacity in most models and less precise fit to an individual shed's threshold.


Reinforcing for Heavier Equipment

Tractors and zero-turn mowers put more stress on a ramp than a push mower ever will. For spans longer than about 6 feet, a center support post helps prevent sagging over time. Doubling up the lumber, using two boards stacked instead of one, is another common fix for anyone unsure if standard dimensional lumber will hold.

Common Mistakes to Avoid

Going to steep.

Going too steep is the top mistake, and it usually happens because someone wants a shorter ramp to save on materials. A ramp that's too steep isn't just harder to climb; it raises the odds of scraping equipment or slipping in wet weather.

Skipping ground-contact-rated lumbe.

Skipping ground-contact-rated lumber is another frequent issue. Regular pressure-treated wood is not always rated for direct ground contact, and using the wrong grade shortens the ramp's life significantly.

Forgetting the threshold transition.

Forgetting the threshold transition trips people up too, since it's easy to nail the slope math and still end up with a lip that catches equipment.

Ignoring drainage

Building a ramp with no gap between boards or no slope to shed water leads to rot and ice buildup faster than expected.

Final Words

Building a shed ramp isn't complicated once the numbers are right. Measure the rise, pick a slope that fits what's using the ramp, and pay close attention to that threshold transition.
